Have you ever found yourself scratching your head, wondering why your buddy can’t access your site while you can access it just fine?

Chances are, your Fail2Ban rules might have blocked them. Don’t worry, we’ve all been there!

In this guide, we’ll explain Fail2Ban and how it works under the hood. This information will help you confidently navigate the server configuration to modify and unban specific IP addresses.

I know what you’re thinking: “Ugh, sounds like a tech nightmare!” But hold your horses! We’re not just going to throw a bunch of command-line gibberish at you. Nope, we’ve got a secret weapon that’ll make managing Fail2Ban as easy as ordering pizza online.

Ready to dive in?

What is Fail2Ban?

Fail2Ban is an open-source intrusion prevention software framework for Linux systems. It monitors system logs and responds to malicious activities by blocking IP addresses. You should note that Fail2Ban alone can’t protect your servers; it is typically used with iptables or similar firewalls to block traffic from banned IP addresses.

Here’s why you should use Fail2Ban on your server:

  1. It prevents brute-force attacks
  2. It reduces server load from persistent attack attempts
  3. It protects multiple services (SSH, web servers, mail servers)
  4. It allows for custom rule creation to address specific threats
  5. It integrates with existing firewall systems

How Does Fail2Ban Work?

There are several components in a Fail2Ban module that help in protecting your server.

Log Monitoring

Fail2Ban continuously monitors specified log files to identify patterns that indicate potential attacks. Fail2Ban triggers automated responses to mitigate security risks when such patterns are detected.

Furthermore, Fail2Ban runs as a background daemon and consumes minimal system resources, allowing configuration reloading without requiring a full restart. Importantly, Fail2Ban maintains its state across system reboots, ensuring consistent protection even after server restarts.

Jail System

Fail2Ban organizes its rules using a “jail” concept where each jail corresponds to a specific service, such as SSH or Apache. Within these jails, Fail2Ban combines filters and actions. Filters define patterns to detect in system logs, identifying potential threats or malicious behavior.

When triggering a filter, Fail2Ban responds with predefined actions, such as blocking the offending IP address. This modular approach allows Fail2Ban to adapt to various services and efficiently protect against unauthorized access and attacks.

Configuration Structure

Fail2Ban uses a hierarchical configuration system to protect against unauthorized access and attacks efficiently. Let’s see how it works:

  1. jail.conf: This is the default configuration file.
  2. jail.local: Administrators can override the default settings here to tailor them to their needs.
  3. filter.d/*.conf: These files define log parsing rules. They specify patterns to detect in system logs to identify potential threats or malicious behavior.
  4. action.d/*.conf: These files specify actions for rule violations. Fail2Ban responds with predefined actions when a filter triggers, such as blocking an offending IP address.

Pattern Matching

Fail2Ban uses regular expressions (regex) for log analysis. This allows it to efficiently identify complex patterns within log files, including IP addresses and timestamps. It also provides customization by supporting user-defined regex for unique log formats.

Beyond static rules, Fail2Ban dynamically adapts to real-time scenarios. You can configure it to lift bans on IP addresses after specified durations automatically. This ensures that legitimate users regain access if they were accidentally blocked. For repeat offenders, Fail2Ban can escalate ban durations to strengthen security measures. Additionally, you can synchronize the list of offending IPs across multiple servers to enhance the overall protection of your network.

How to Unban an IP in Fail2Ban?

Sometimes, you might need to unban an IP address that Fail2Ban has blocked. Here’s how to do it:

Step #1: List all Banned IPs in Fail2Ban

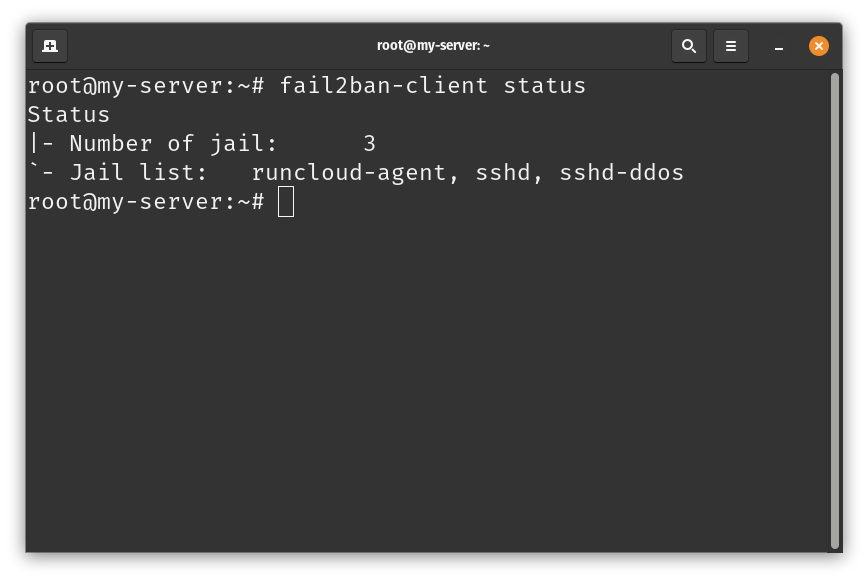

Fail2Ban stores a list of all the IPs currently banned from connecting to your server. Run the following command to see all active jails on your server:

sudo fail2ban-client status
fail2ban IP address unban

This command shows all active jails. To see banned IPs for a specific jail (e.g., sshd), you can run the following command:

sudo fail2ban-client status sshd

In the above example, don’t forget to replace the sshd with the name of the jail that you want to analyze.

unban fail2ban

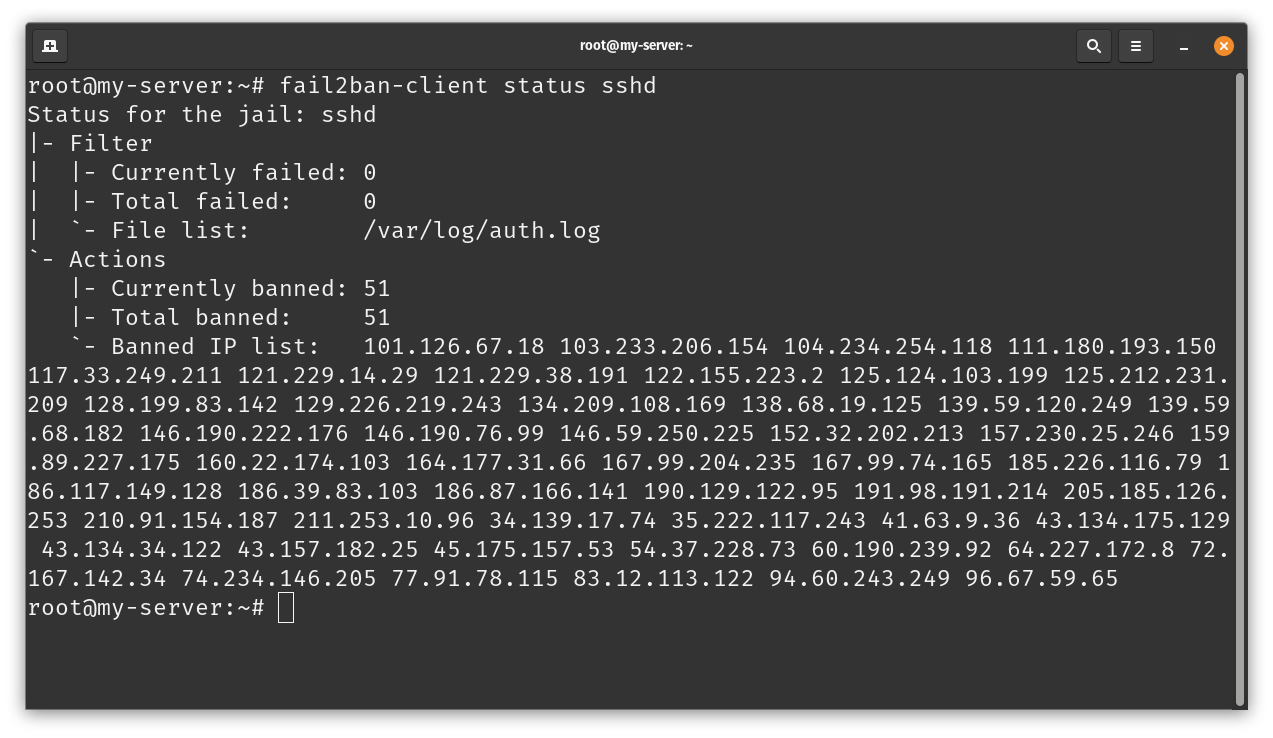

In the above example, you can see the list of all the IP addresses that were banned from connecting to this server. This command can help you identify whether one of your colleagues’ IP addresses was accidentally banned.

Step #2: Unban Specific IP in Fail2Ban

If you find that Fail2Ban banned your IP address, you can either wait for Fail2Ban to unban it or remove it automatically. An offending IP address is banned for 10 minutes by default, but server administrators can extend or reduce this.

However, if you don’t want to wait for the IP address to be automatically removed from the block list, then you can manually log in to your server and run the following command:

sudo fail2ban-client set JAIL unbanip IP_ADDRESS

In the above command, replace JAIL with the specific jail name (e.g., sshd) and IP_ADDRESS with the IP you want to unblock. For example:

sudo fail2ban-client set sshd unbanip 192.168.1.100

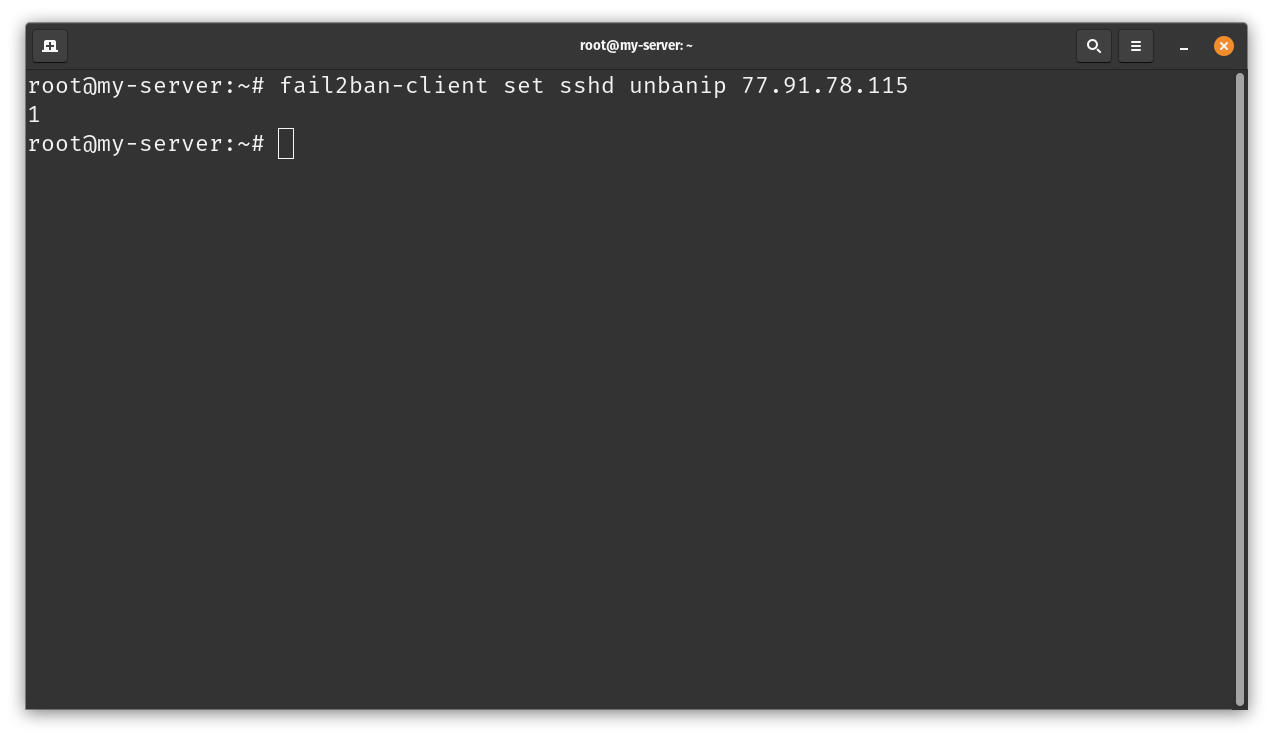

The following example shows that the offending IP was found in the block list once. Therefore, the server returned 1 as the output.

This functionality can be handy if you frequently perform security tests on your site that result in your IP address getting banned. This command allows you to continue performing security tests without turning off the firewall or waiting for long periods.

However, there’s an even better way to do this.

Step #3: Whitelist Specific IP in Fail2Ban (optional)

If you have a static IP address or a corporate network where the list of IP ranges is fixed, you can whitelist these IP addresses. Once you add the addresses to the whitelist, these IP addresses will never get blocked, regardless of the number of failed attempts.

However, this can also be a security flaw if misconfigured. We strongly recommend only adding IP addresses belonging to your organization or company. Follow the steps below to prevent Fail2Ban from banning a specific IP in the future:

  1. Edit the Fail2Ban configuration file using the following command. If you feel out of your depth here, you can refer to our guide explaining how to edit files on remote servers with SSH and Nano.
sudo nano -l /etc/fail2ban/jail.local

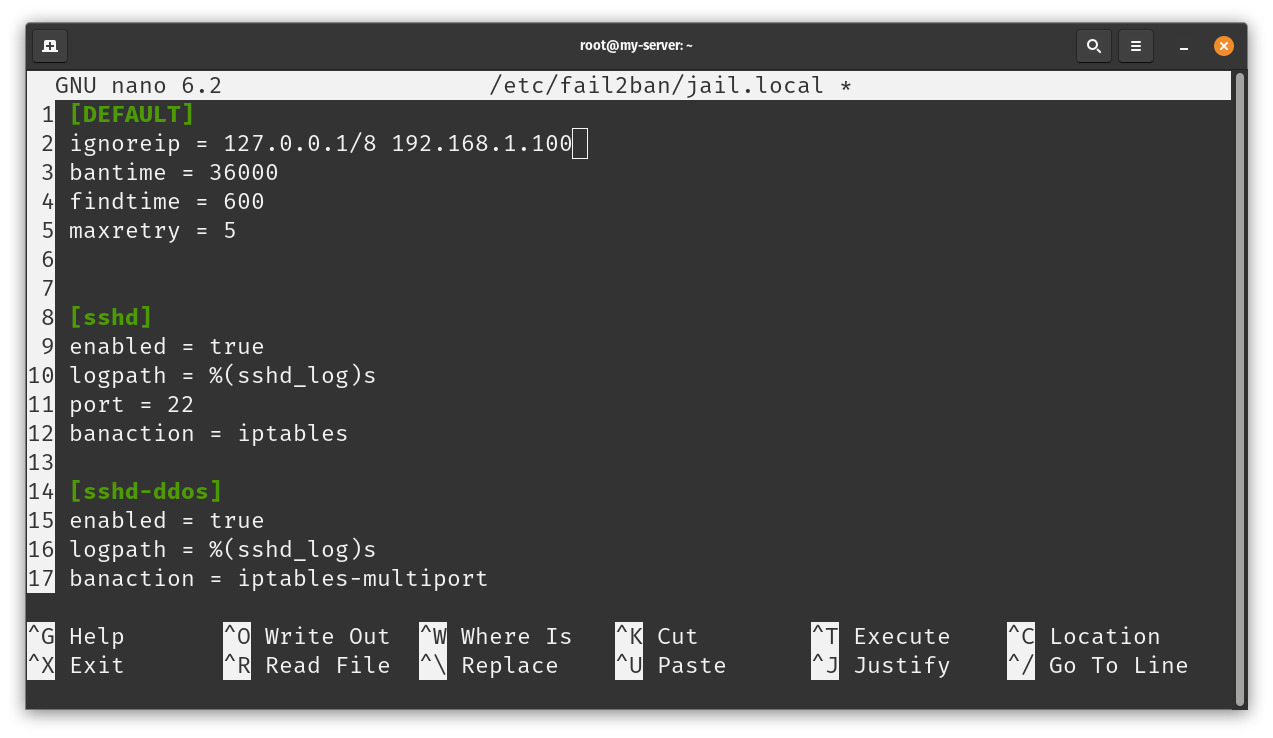

  1. After opening the config file, you need to add the list of IP addresses to the ignoreip line. This will tell Fail2Ban to ignore these IP addresses in the future. By default, the 127.0.0.1/8 IP range is automatically whitelisted. If you want to add a specific IP, such as 192.168.1.100 then you can add this IP after it as shown below.
ignoreip = 127.0.0.1/8 ::1 192.168.1.100

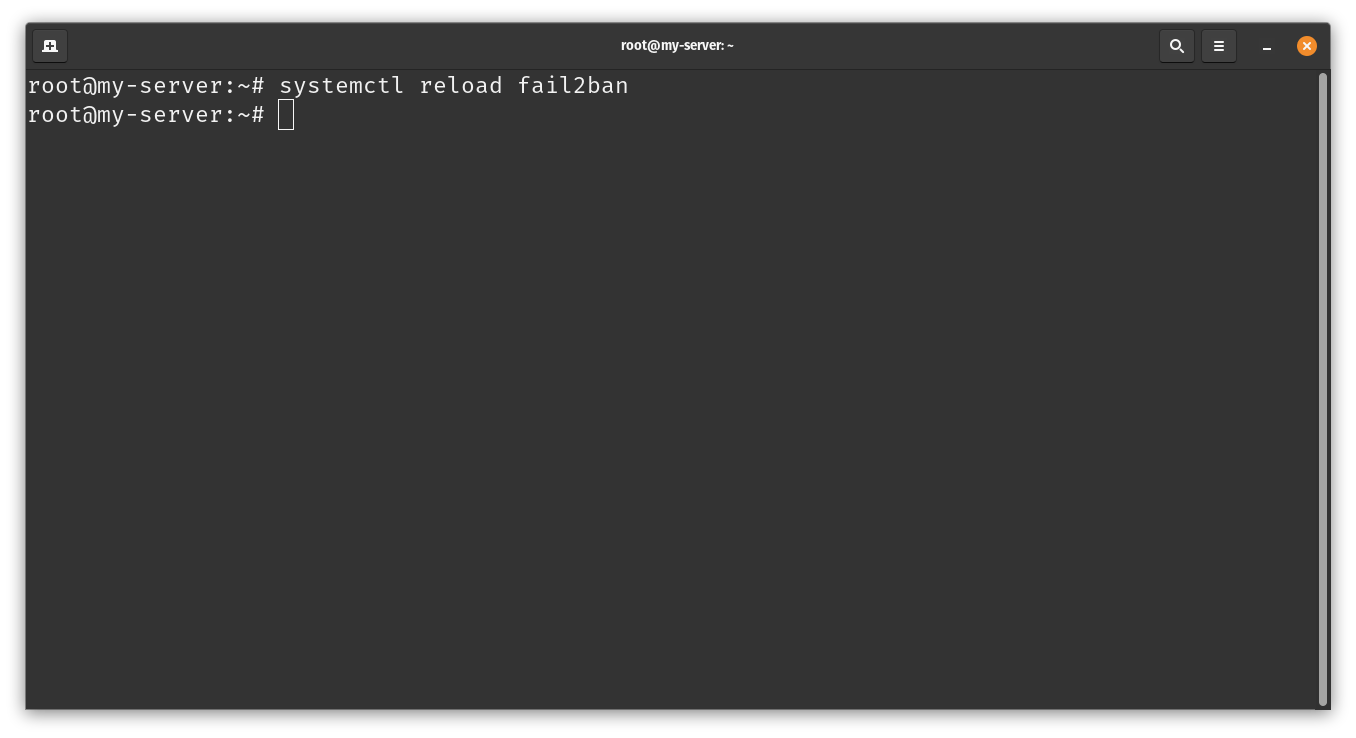

  1. Once you have added the IP addresses, you can save the file by pressing Ctrl + O, Enter, or Ctrl + X. After saving the file, you need to reload the Fail2Ban service to use the updated configuration. This is slightly faster than restarting the service, as it simply refreshes the configuration without shutting down the application.
sudo systemctl reload fail2ban

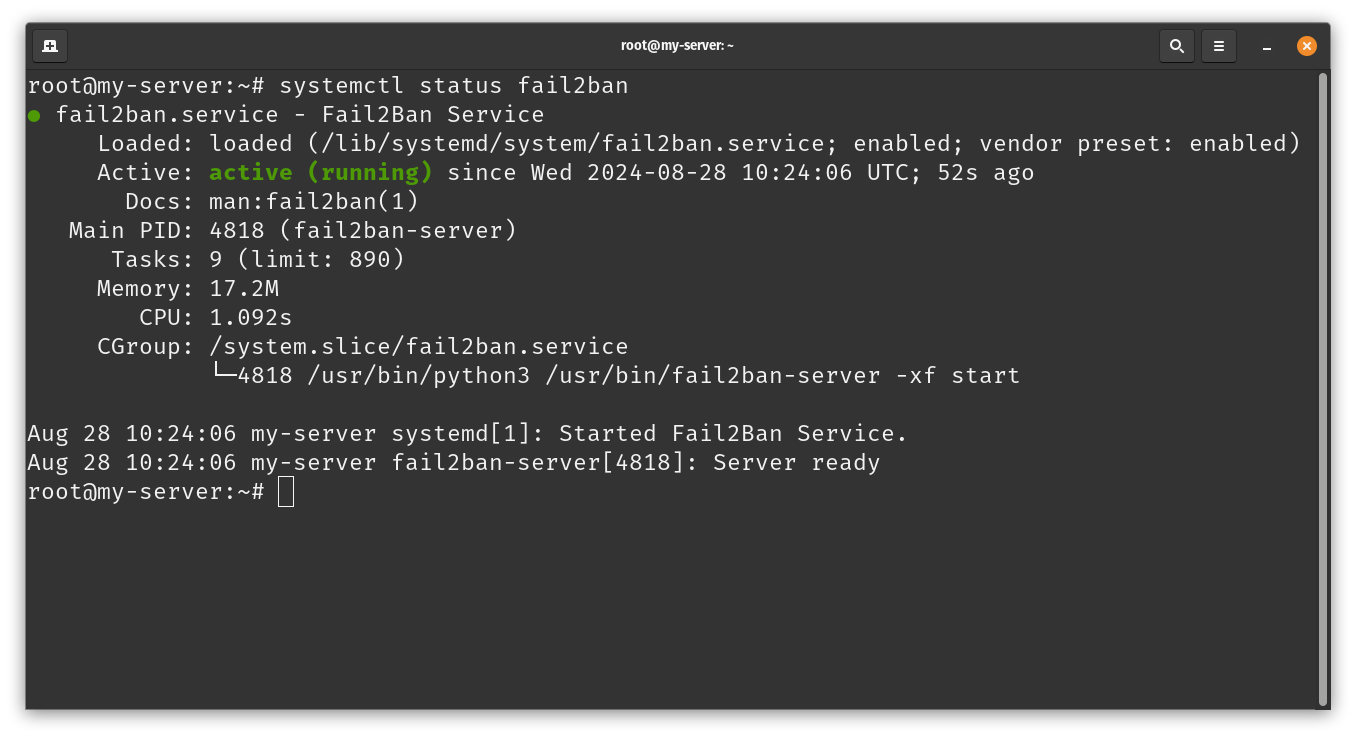

After making the changes, checking whether the service is up and running is always a good idea. Run the following command to see if your Fail2Ban service is running smoothly:

systemctl status fail2ban

In the following example, we can see that the service is showing the status of active (running), which means that changing the configuration files didn’t cause any unexpected problems with the Fail2Ban service.

How do you unban IPs in Fail2Ban with RunCloud?

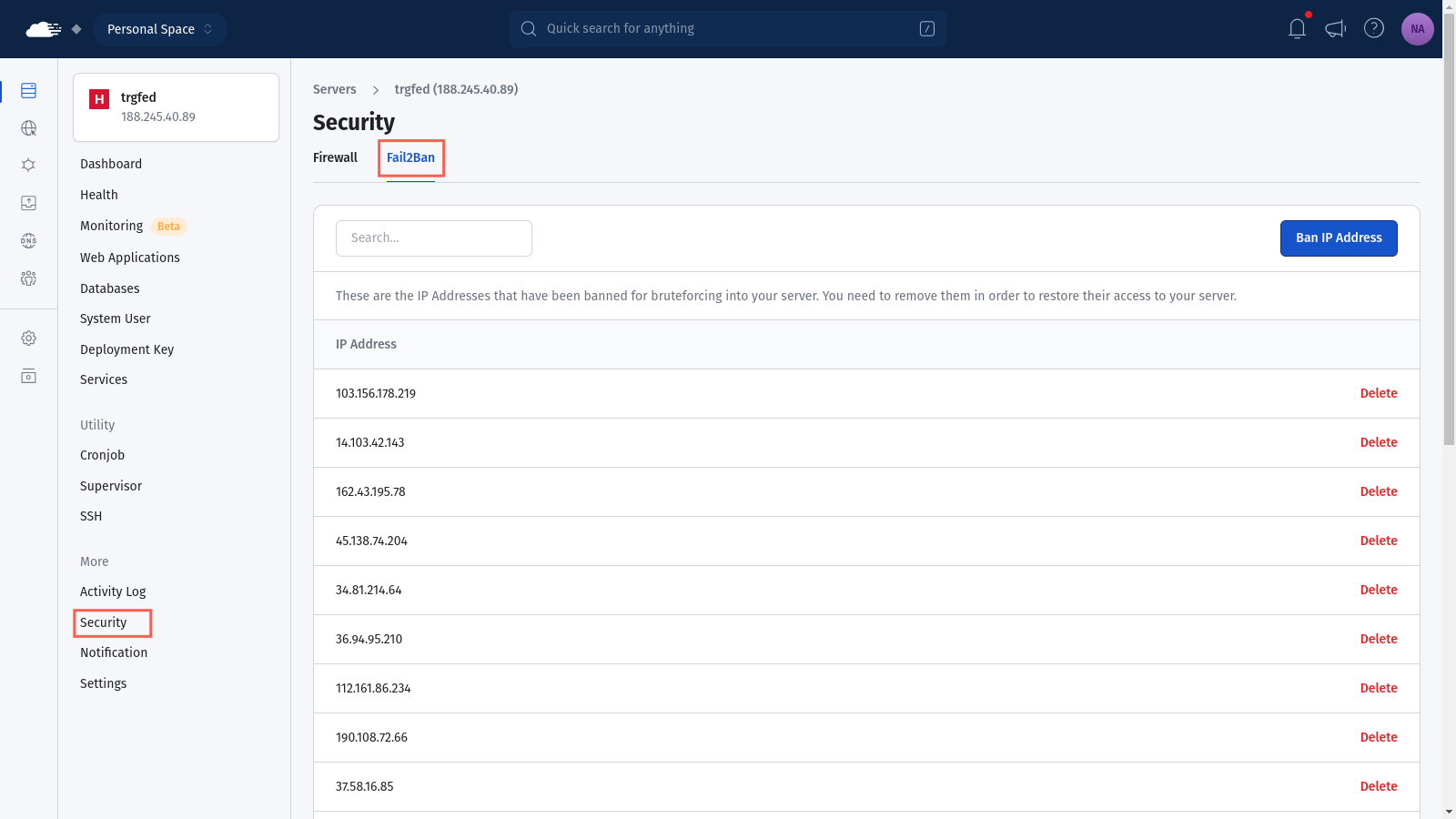

RunCloud provides a user-friendly interface to manage Fail2Ban, making it easier to unban IPs. Here’s how you can do it:

  1. Log in to your RunCloud dashboard and navigate to the server where you want to unban an IP.
  2. Go to the “Security” tab and switch to the “Fail2Ban” section.
  3. On this screen, you’ll see a list of banned IPs.

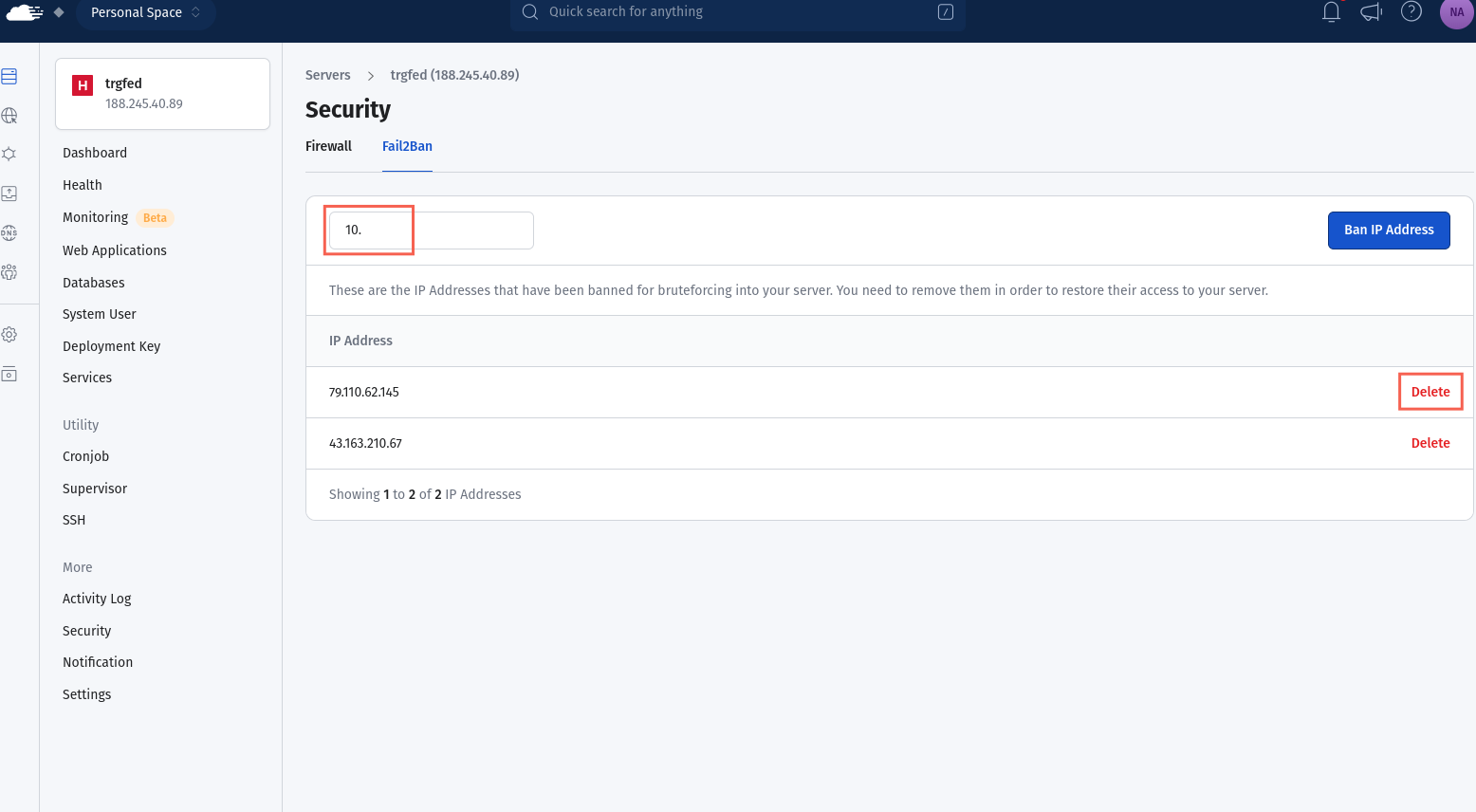

  1. Click the “Delete” button next to the IP you want to unban. If there are too many IPs, you can filter out the IP addresses by using the search functionality.

Final Thoughts

Implementing strict Fail2Ban rules is necessary for protecting your servers from potential threats. A properly configured Fail2Ban instance can help you defend against various attacks. However, it’s essential to recognize that even well-configured systems can sometimes produce false positives, potentially blocking legitimate traffic.

This is why understanding how to unban IP addresses is essential. It lets you quickly restore access for legitimate users who may have been inadvertently blocked, maintaining security and accessibility.

While Fail2Ban is a powerful tool, its complexity can be scary, especially for those new to server management. This is where RunCloud shines.

RunCloud provides a user-friendly interface that simplifies Fail2Ban management, making it accessible to users of all experience levels.

With RunCloud:

  • You can easily view and manage banned IPs
  • Unbanning becomes a simple, one-click process
  • Complex configurations are streamlined through an intuitive interface

This approach is significantly more straightforward than using CLI commands directly on the server. RunCloud’s interface streamlines the entire process, allowing you to focus on your core tasks rather than getting bogged down in server management complexities.

Ready to Simplify Your Server Security?

If you want to enhance your server security without the steep learning curve, RunCloud offers the perfect solution. With its intuitive Fail2Ban integration, you can enjoy robust protection and easy management.

Sign up for RunCloud today and experience user-friendly server management.

FAQs on Fail2Ban

How do I ignore my IP address in fail2ban?

Add your IP to the ignoreip list in the Fail2Ban configuration file (/etc/fail2ban/jail.local). In RunCloud, you can do this through the web interface in the Fail2Ban settings.

Does a VPN bypass an IP ban?

VPNs can potentially bypass IP bans as they change your IP address. However, if the new VPN IP is also detected performing suspicious activities, it can get banned.

Is Fail2ban an IPS or IDS?

Fail2Ban is primarily an Intrusion Prevention System (IPS). It actively blocks potential threats based on log analysis rather than detecting and reporting them like an IDS.

How do I allow IP?

To allow an IP, add it to the ignoreip list in Fail2Ban’s configuration. In RunCloud, this can often be done through the web interface in the Fail2Ban or firewall settings.

How do I know if my IP is banned with Fail2Ban?

Check the Fail2Ban status using sudo fail2ban-client status or look in the banned IP list in RunCloud’s Fail2Ban section. If you can’t access the server, your IP might be banned.

What is the default block time for fail2ban?

The default block time varies but is often set to 10 minutes or 1 hour. In RunCloud, you can check and modify this setting in the Fail2Ban configuration section.

How can the permanent ban in Fail2Ban be bypassed?

To bypass a permanent ban, an administrator must manually unban the IP. If it’s your IP, you may need to contact your hosting provider or use a different IP to access the server and unban yourself.
